g218-install

G218 Install

145.1dB*
25 Hz-90 Hz

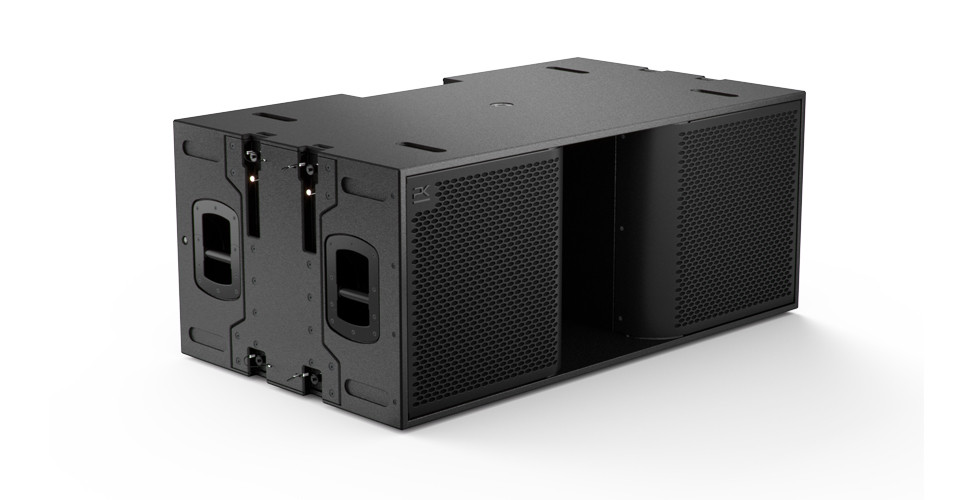

G218 Install brings the tour-proven functionality of the G218 subwoofer to performance installations and live event spaces. Representing the pinnacle of transducer and amplifier technology, the high-output G218 Install offers unparalleled tonality, clarity, and impact for the most demanding low-end applications. This space-efficient low-frequency module features Integrated Powered Adaptive Loudspeaker (IPAL) technology with Differential Pressure Control to optimize the power-to-output efficiency ratio by using full boundary-conditions processing. An 8,500 W Class D IpalMod amplifier drives two high-excursion 18” transducers in a bass reflex design. The unrestricted vent ensures non-turbulent streamlined airflow, significantly increasing output and eliminating port noise. Optional integrated rigging hardware allows for up to 12 modules to be flown when coupled with the custom Suspension Frame, or securely ground-stacked. In either configuration, G218 is cardioid-arrayable, ensuring maximum flexibility for large subwoofer arrays and other expansive system designs.

25 Hz-90 Hz

2 x 18" Bass Reflex

Class D IpalMod
8,500 W
Auto-Switching 100-240 V, 50-60 Hz
920 W
UDP over Ethernet

Analog/AES
XLR/etherCON
powerCON TRUE1 – IP65

120 kg/264 lb
1,395 x 575 x 800
54.92 x 22.64 x 31.5
12 Modules
IP43/IP42
IP65 Connectors
Void-Free, High-Grade Baltic Birch
6061-T6 Aluminum
EXL Polyurea
Powder-Coated Carbon Steel
* Maximum SPL with Pink Noise Crest Factor 4 at 1 m (with limiters & DSP active)

Release DateCategoryFile TypeSize kBLanguage
G218 Install (Letter)11.15.2021Spec Sheetapplication/pdf2,870.79ENGDownload 'G218 Install-Spec Sheet-Letter.pdf'
G218 Install (A4)11.15.2021Spec Sheetapplication/pdf2,869.12ENGDownload 'G218 Install-Spec Sheet-A4.pdf'
